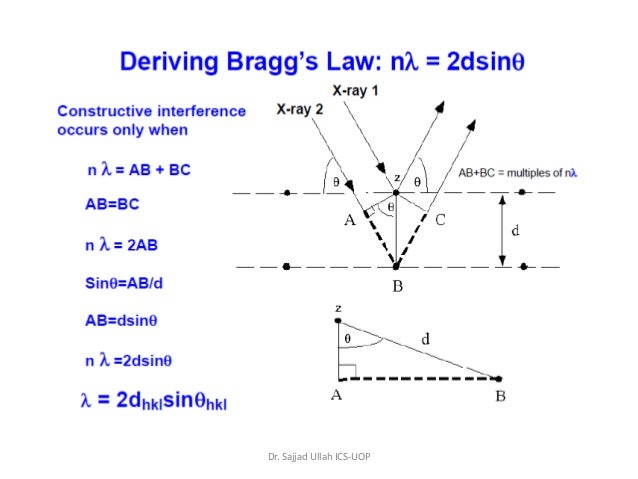

We are primarily interested in the peaks formed when scattered X-rays constructively interfere. All the atoms in the path of the X-ray beam scatter X-rays. The concept used to derive Bragg's law is very similar to that used for Young’s double slit experiment.Īn X-ray incident upon a sample will either be transmitted, in which case it will continue along its original direction, or it will be scattered by the electrons of the atoms in the material. Geiger Muller, scintillation or proportional counter), a line (1D) or an area (2D) detector may be used. In the past most X-ray work was done with film, now electronic detectors are used. Modern detectors also filter wavelengths (or energy) electronically Detectors The monochromator is set so that the beam is diffracted and only X-rays with the required wavelength reach the detector.ģ. A monochromator that works on the principle of diffraction:ĭuring diffraction a monochromator (a single crystal of known lattice spacing and orientation) is placed in the path of the primary or diffracted beam. In selecting the thickness of the filter, a compromise has to be reached between eliminating as much as possible of the undesired radiation andĢ. Ni absorption edge is midway between the K ß and K a lines so that the former is reduced very substantially while the latter is only marginally reduced. Using a filter which works by the absorption principle: The white and K β radiation can be reduced byġ. The diagram below illustrates the characteristic X-ray emission spectrum that is obtained from a copper target. Methods for obtaining Characteristic Radiation For most experiments, a single characteristic radiation is selected using a filter or monochromator. Some have a continuous distribution of wavelengths between about 0.5 Å and 5 Å ("white radiation") and some have wavelengths characteristic of the electronic levels in the target. When the target’s inner electrons are ejected and outer ones fall to take their place, X-rays are emitted. The laboratory source of X-rays consists of an evacuated tube in which electrons are emitted from a heated tungsten filament, and accelerated by an electric potential (typically several tens of kilovolts) to impinge on a water-cooled metal target. Experimental matters Production and measurement of X-Rays An Ångström corresponds to 1 x 10 -10 m so one Ångström is equal to 0.1 nm. In crystallography, measurements are expressed in Ångströms (Å). cell parameters, space group and atomic coordinates) of novel or unknown crystalline materials. It is also used to determine the (crystallographic) structure (i.e. X-ray diffraction is an important tool used to identify phases by comparison with data from known structures, quantify changes in the cell parameters, orientation, crystallite size and other structural parameters. This is convenient as it allows crystal structures to diffract X-rays. X-radiation ("X-rays") is electromagnetic radiation with wavelengths between roughly 0.1Å and 100Å, typically similar to the interatomic distances in a crystal. You should also have read the Crystallography TLP and the Lattice Planes and Miller Indices TLP. This is covered in the Atomic Scale Structure of Materials TLP. You will find it beneficial to have knowledge of crystal structures, as this will enable a better understanding of the results of X-ray diffraction. You may find it helpful to read the Diffraction and Imaging. be aware of the techniques used to obtain and process X-ray diffraction data.know how this phenomenon can be used to gain knowledge of the crystalline structure of the material.understand the major interactions between X-rays and a crystal lattice.Relationship between crystalline structure and X-ray data.Determining lattice parameters accurately.
